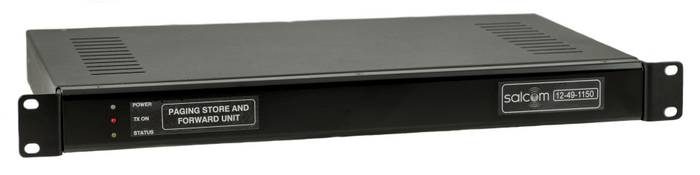

Rack Mounted Transceivers/Repeaters - VHF / UHF

12-49-0000

The 12-49 series of 19" x 1U rack mountable repeaters are available as VHF or UHF units with user-programmable power outputs ranging from 50 milliwatts to 5 watts.

By adding a power amplifier within the 1U rack the unit becomes a powerful 25W output store & forward paging repeater.

Available Protocols: Salcom, TAP/PET, TNPP, ESPA.4.4.4, Ascom, Gaming, Austco, Match, Gent, GPS & Pulse Count, SMS, Scope, Comp1, Comp2 & Gaming

Salcom has further developed its range of rack systems in order to  provide off-the-shelf 1U 19 inch solutions for paging and telemetry.

These racks provide a conveniently packaged selection of standard Salcom core products that can easily be added to your server rack.

The 12-49 series of transceivers/repeaters are available as VHF or UHF units with user-programmable power outputs ranging from 50 milliwatts to 5 watts, with 25W output also being a configurable option when a power amplifier is also added.

They are capable of operating as NRZ or POCSAG transmitters. The built-in POCSAG encoder can be enabled or disabled as required.

In addition to a direct/RS232 buffered serial port, an on-board USB port enhances the range of applications to which the transmitter can be applied. Input/Output expansion is also possible via an internal.

The USB and RS232 ports can be used to initiate paging transmissions using the Salcom proprietary protocol, TAP/PET, TNPP, ESPA.4.4.4, Ascom, Austco, Match, Gent, GPS & Pulse Count, SMS, Scope, Comp1, Comp2 & Gaming. These ports can be used concurrently making it possible to connect a telephone interface unit and still initiate paging transmissions via the USB port.

Four discrete inputs are supported which may be used to initiate relay commands for remote control applications.

For paging applications a different pre-programmed message can be assigned to an input on high and/or low transition. The unit also supports low voltage detection on the power input.

Configuration of the transmitter is performed via the USB port or the serial port using an intuitive Salcom programming application which allows for the setting of all operational parameters.

The 12-49 is housed in an attractive 19" x 1U rack.

Please also see the 12-49 Transmitter (only) options in the Transmitters product section.

  • Supports alphanumeric, numeric & tone only transmissions.
  • Configurable simulcast Modulation Delay
  • Telemetry Control
  • Fire Panel Messaging.
  • Event and status reporting
  • Supports NRZ and POCSAG Transmissions
  • High VSWR tolerance
  • Direct/RS232 buffered serial port
  • USB port
  • Four discrete inputs
  • POCSAG encoder (programmable on/off)
  • RF output through standard BNC termination
  • 240 Character messaging
  • Buffered messages
  • Input timing control(watchdog)
  • Programmable de-bounce control
  • Available protocols includes Salcom, TAP (PET), Scope, Comp1, Comp2, TNPP, ESPA4.4.4, Ascom, Austco, Match, Gent, SMS, Gaming, GPS & Pulse Count.
  • NZS/AS4769, ETS 300 224 (EC), FCC Pt 90.203 approvals
Specification
Transmitter
Model 12-62-0000 VHF/UHF Transmitter
Frequency Range VHF 148 - 164 MHz - VHF (Model No. 12-62-00150)
Frequency Range UHF 427.5 - 475 MHz UHF (Model No. 12-62-0450)
Frequency Selection User Configurable
Power Supply +13.8V typical (11-15 VDC range)
Power Consumption Low Power Mode: 17.5mA
Standby: 40mA
Transmit: 1.2A @ 4W
Transmit Power 50mW, 100mW, 250mW, 500mW, 1W, 2W, 5W, 25W
(25W possible via Salcom Power Amplifier)
Channel Spacing 5kHz, 6.25kHz, 10kHz, 12.5kHz, 25kHz
Modulation FSK with NRZ data
Deviation ±2.25kHz or ±4.5kHz
Transmit Duty Cycle 50%; Maximum 5 minutes on time
Baud Rates 512,1200
Message Format POGSAC
Configuration Application 12-62 Configuration Tool
Programming Cable Mini USB
12-45-0000 (RJ12 to DB9)
Can be used with a USB to RS232 DB9 Serial Adapter Cable
Receiver
Frequency Range 148-165MHz - VHF (Model No. 12-84-7150)
440-480MHz - UHF (Model No. 12-84-7450)
Note: 80MHz to 900MHz available on request
Frequency Selection User configurable Note: VHF model is only adjustable by ±5MHz from (customer defined) factory preset frequency
Power Supply +13.8V typical (11 to 15 VDC range)
Power Consumption Standby: 40mA Relays: 18mA per energised relay
Modulation FSK with NRZ data
Receiver Sensitivity Approx -124 dBm
Baud Rates 512, 1200
Message Format POCSAG
Configuration Application 12-84 Configuration Tool
Programming Cable 12-45-0000 (RJ12 to DB9)
Can be used with a USB to RS232 DB9 Serial Adapter Cable
Serial Port 9600 , N, 8, 1; RS232
Discrete Outputs 2 Relay Contacts (1A @ 24VDc); 2 Open Collector (100mA max)
Note: Not suitable for 240VAC Connections
Connectors Serial Port (RS232) = RJ12 (6P6C)
Outputs (Relay / Open Collector) = RJ45 (8C)
Power Connector 2-way plug & socket, screw connections (supplied)
RF Connector 50Ω BNC (Product supplied with aerial)
Environmental Protection Not suitable for outdoor use and should be protected from adverse environmental conditions
Operating Temperature -10ºC to +50ºC (+14ºF to +122ºF)
Indicators Power LED (Green)
- Slow Flashing = Normal Operation
- Solid (up to 5s) = Receiving Data Status LED (Red)
- Flashing = Error Condition
12-49-0000 Product Brochure
  • Model:
    12-49-0000
12-49-0000 User Manual
  • Model:
    12-49-0000
Configuration Tool - Pre 22/05/2018
  • Model:
    12-62 Series
  • Description:
    Transmitter configuration is done via the 12-62 configuration tool.
    This version is for all units supplied before May 22 2018. If your unit was supplied after this date, download the configuration tool below
  • Supported:
    Microsoft Windows
  • Latest Version:
    1.89
Configuration Tool - Post 22/05/2018
  • Model:
    12-62 Series
  • Description:
    Transmitter configuration is done via the 12-62 configuration tool.
    This version is for all units supplied after May 22 2018. If your unit was supplied before this date, download the configuration tool above.
  • Supported:
    Microsoft Windows
  • Latest Version:
    2.02
  • Information

    Salcom has further developed its range of rack systems in order to  provide off-the-shelf 1U 19 inch solutions for paging and telemetry.

    These racks provide a conveniently packaged selection of standard Salcom core products that can easily be added to your server rack.

    The 12-49 series of transceivers/repeaters are available as VHF or UHF units with user-programmable power outputs ranging from 50 milliwatts to 5 watts, with 25W output also being a configurable option when a power amplifier is also added.

    They are capable of operating as NRZ or POCSAG transmitters. The built-in POCSAG encoder can be enabled or disabled as required.

    In addition to a direct/RS232 buffered serial port, an on-board USB port enhances the range of applications to which the transmitter can be applied. Input/Output expansion is also possible via an internal.

    The USB and RS232 ports can be used to initiate paging transmissions using the Salcom proprietary protocol, TAP/PET, TNPP, ESPA.4.4.4, Ascom, Austco, Match, Gent, GPS & Pulse Count, SMS, Scope, Comp1, Comp2 & Gaming. These ports can be used concurrently making it possible to connect a telephone interface unit and still initiate paging transmissions via the USB port.

    Four discrete inputs are supported which may be used to initiate relay commands for remote control applications.

    For paging applications a different pre-programmed message can be assigned to an input on high and/or low transition. The unit also supports low voltage detection on the power input.

    Configuration of the transmitter is performed via the USB port or the serial port using an intuitive Salcom programming application which allows for the setting of all operational parameters.

    The 12-49 is housed in an attractive 19" x 1U rack.

    Please also see the 12-49 Transmitter (only) options in the Transmitters product section.

  • Details
    • Supports alphanumeric, numeric & tone only transmissions.
    • Configurable simulcast Modulation Delay
    • Telemetry Control
    • Fire Panel Messaging.
    • Event and status reporting
    • Supports NRZ and POCSAG Transmissions
    • High VSWR tolerance
    • Direct/RS232 buffered serial port
    • USB port
    • Four discrete inputs
    • POCSAG encoder (programmable on/off)
    • RF output through standard BNC termination
    • 240 Character messaging
    • Buffered messages
    • Input timing control(watchdog)
    • Programmable de-bounce control
    • Available protocols includes Salcom, TAP (PET), Scope, Comp1, Comp2, TNPP, ESPA4.4.4, Ascom, Austco, Match, Gent, SMS, Gaming, GPS & Pulse Count.
    • NZS/AS4769, ETS 300 224 (EC), FCC Pt 90.203 approvals
  • Specifications
    Specification
    Transmitter
    Model 12-62-0000 VHF/UHF Transmitter
    Frequency Range VHF 148 - 164 MHz - VHF (Model No. 12-62-00150)
    Frequency Range UHF 427.5 - 475 MHz UHF (Model No. 12-62-0450)
    Frequency Selection User Configurable
    Power Supply +13.8V typical (11-15 VDC range)
    Power Consumption Low Power Mode: 17.5mA
    Standby: 40mA
    Transmit: 1.2A @ 4W
    Transmit Power 50mW, 100mW, 250mW, 500mW, 1W, 2W, 5W, 25W
    (25W possible via Salcom Power Amplifier)
    Channel Spacing 5kHz, 6.25kHz, 10kHz, 12.5kHz, 25kHz
    Modulation FSK with NRZ data
    Deviation ±2.25kHz or ±4.5kHz
    Transmit Duty Cycle 50%; Maximum 5 minutes on time
    Baud Rates 512,1200
    Message Format POGSAC
    Configuration Application 12-62 Configuration Tool
    Programming Cable Mini USB
    12-45-0000 (RJ12 to DB9)
    Can be used with a USB to RS232 DB9 Serial Adapter Cable
    Receiver
    Frequency Range 148-165MHz - VHF (Model No. 12-84-7150)
    440-480MHz - UHF (Model No. 12-84-7450)
    Note: 80MHz to 900MHz available on request
    Frequency Selection User configurable Note: VHF model is only adjustable by ±5MHz from (customer defined) factory preset frequency
    Power Supply +13.8V typical (11 to 15 VDC range)
    Power Consumption Standby: 40mA Relays: 18mA per energised relay
    Modulation FSK with NRZ data
    Receiver Sensitivity Approx -124 dBm
    Baud Rates 512, 1200
    Message Format POCSAG
    Configuration Application 12-84 Configuration Tool
    Programming Cable 12-45-0000 (RJ12 to DB9)
    Can be used with a USB to RS232 DB9 Serial Adapter Cable
    Serial Port 9600 , N, 8, 1; RS232
    Discrete Outputs 2 Relay Contacts (1A @ 24VDc); 2 Open Collector (100mA max)
    Note: Not suitable for 240VAC Connections
    Connectors Serial Port (RS232) = RJ12 (6P6C)
    Outputs (Relay / Open Collector) = RJ45 (8C)
    Power Connector 2-way plug & socket, screw connections (supplied)
    RF Connector 50Ω BNC (Product supplied with aerial)
    Environmental Protection Not suitable for outdoor use and should be protected from adverse environmental conditions
    Operating Temperature -10ºC to +50ºC (+14ºF to +122ºF)
    Indicators Power LED (Green)
    - Slow Flashing = Normal Operation
    - Solid (up to 5s) = Receiving Data Status LED (Red)
    - Flashing = Error Condition
  • Manuals & Downloads
    12-49-0000 Product Brochure
    • Model:
      12-49-0000
    12-49-0000 User Manual
    • Model:
      12-49-0000
    Configuration Tool - Pre 22/05/2018
    • Model:
      12-62 Series
    • Description:
      Transmitter configuration is done via the 12-62 configuration tool.
      This version is for all units supplied before May 22 2018. If your unit was supplied after this date, download the configuration tool below
    • Supported:
      Microsoft Windows
    • Latest Version:
      1.89
    Configuration Tool - Post 22/05/2018
    • Model:
      12-62 Series
    • Description:
      Transmitter configuration is done via the 12-62 configuration tool.
      This version is for all units supplied after May 22 2018. If your unit was supplied before this date, download the configuration tool above.
    • Supported:
      Microsoft Windows
    • Latest Version:
      2.02
