Rack Mounted Transmitters - VHF / UHF - 4W / 5W / 25W

12-49-0000

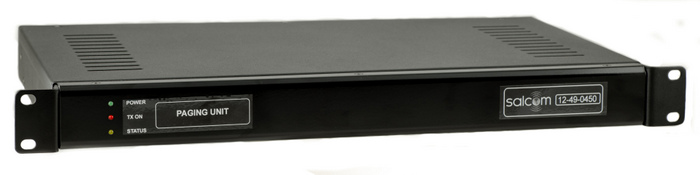

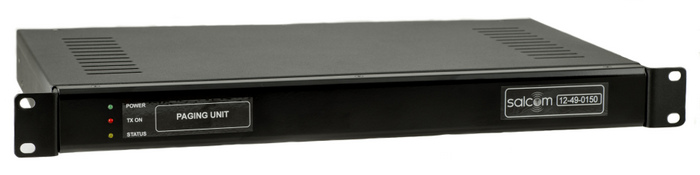

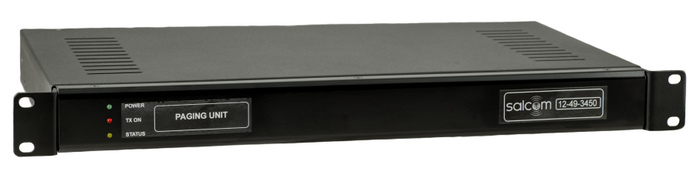

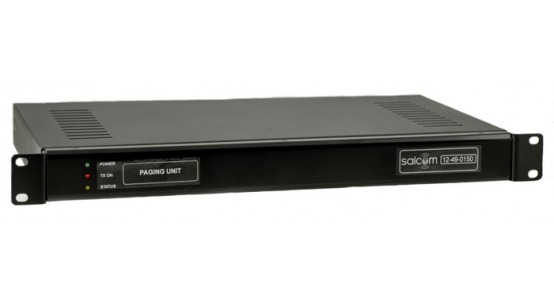

The 12-49 series of 19" x 1U rack mountable transmitters are available as VHF or UHF units with user-programmable power outputs ranging from 50 milliwatts to 25 watts.

By adding a power amplifier within the 1U rack the unit becomes a powerful 25W output telemetry transmitter.

Available protocols includes:
Salcom, TAP (PET), Scope, Comp1, Comp2, TNPP, ESPA4.4.4, Ascom, Austco, Match, Gent, SMS, Gaming, GPS & Pulse Count.

Salcom has further developed its range of rack systems in order to  provide off-the-shelf 1U 19 inch solutions for telemetry.

These racks provide a conveniently packaged selection of standard Salcom core products that can easily be added to your server rack.

The 12-49 series of transmitters are available as VHF or UHF units with user-programmable power outputs ranging from 50 milliwatts to 5 watts, with 25W output also being a configurable option .

They are capable of operating as NRZ or POCSAG transmitters. The built-in POCSAG encoder can be enabled or disabled as required.

In addition to a direct/RS232 buffered serial port, an on-board USB port enhances the range of applications to which the transmitter can be applied. Input/Output expansion is also possible via an internal.

The USB and RS232 ports can be used to initiate paging transmissions using the Salcom proprietary protocol, Paging Entry Protocol (PET) or Telocator Alphanumeric Protocol (TAP) PG1 protocol. These ports can be used concurrently making it possible to connect a telephone interface unit and still initiate paging transmissions via the USB port.

Four discrete inputs are supported which may be used to initiate relay commands for remote control applications.

Configuration of the transmitter is performed via the USB port or the serial port using an intuitive Salcom programming application which allows for the setting of all operational parameters.

The 12-49 is housed in an attractive 19" x 1U rack.

Please also see the 12-49 Repeater options in the Transceivers/Repeaters product section.

  • Supports alphanumeric, numeric & tone only transmissions.
  • Configurable simulcast Modulation Delay
  • Telemetry Control
  • Fire Panel Messaging.
  • Event and status reporting
  • Supports NRZ and POCSAG Transmissions
  • High VSWR tolerance
  • Direct/RS232 buffered serial port
  • USB port
  • Four discrete inputs
  • POCSAG encoder (programmable on/off)
  • RF output through standard BNC termination
  • 240 Character messaging
  • Buffered messages
  • Input timing control(watchdog)
  • Programmable de-bounce control
  • Available protocols includes Salcom, TAP (PET), Acope, Comp1, Comp2, TNPP, ESPA4.4.4, Ascom, Austco, Match, Gent, SMS, Gaming, GPS & Pulse Count.
  • NZS/AS4769, ETS 300 224 (EC), FCC Pt 90.203 approvals
Specifications
Model 12-62-0000 VHF/UHF Transmitter
Frequency Range VHF 148 - 164 MHz - VHF (Model No. 12-62-00150)
Frequency Range UHF 427.5 - 475 MHz UHF (Model No. 12-62-0450)
Frequency Selecion User Configurable
Power Supply +13.8V typical (11-15 VDC range)
Power Consumption Low Power Mode: 17.5mA
Standby: 40mA
Transmit: 1.2A @ 4W
Transmit Power 5W, 2W, 1W, 500mW, 250mW, 100mW, 50mW
Channel Spacing 5kHz, 6.25kHz, 10kHz, 12.5kHz, 25kHz
Modulation FSK with NRZ data
Deviation ±2.25kHz or ±4.5kHz
Transmit Duty Cycle 50%; Maximum 5 minutes on time
Baud Rates 512,1200
Message Format POGSAC
Configuration Application 12-62 Configuration Tool
Programming Cable Mini USB
12-45-0000 (RJ12 to DB9)
Can be used with a USB to RS232 DB9 Serial Adapter Cable
Product Brochure
  • Model: 12-49-0000
    12-62 Series
User Manual
  • Model:
    12-62 Series
Configuration Tool - Pre 22/05/2018
  • Model:
    12-62 Series
  • Description:
    This version is for all units supplied before May 22 2018. If your unit was supplied after this date, download the configuration tool below
  • Supported:
    Microsoft Windows
  • Latest Version:
    1.89
Configuration Tool - Post 22/05/2018
  • Model:
    12-62 Series
  • Description:
    This version is for all units supplied after May 22 2018. If your unit was supplied before this date, download the configuration tool above.
  • Supported:
    Microsoft Windows
  • Latest Version:
    2.02
