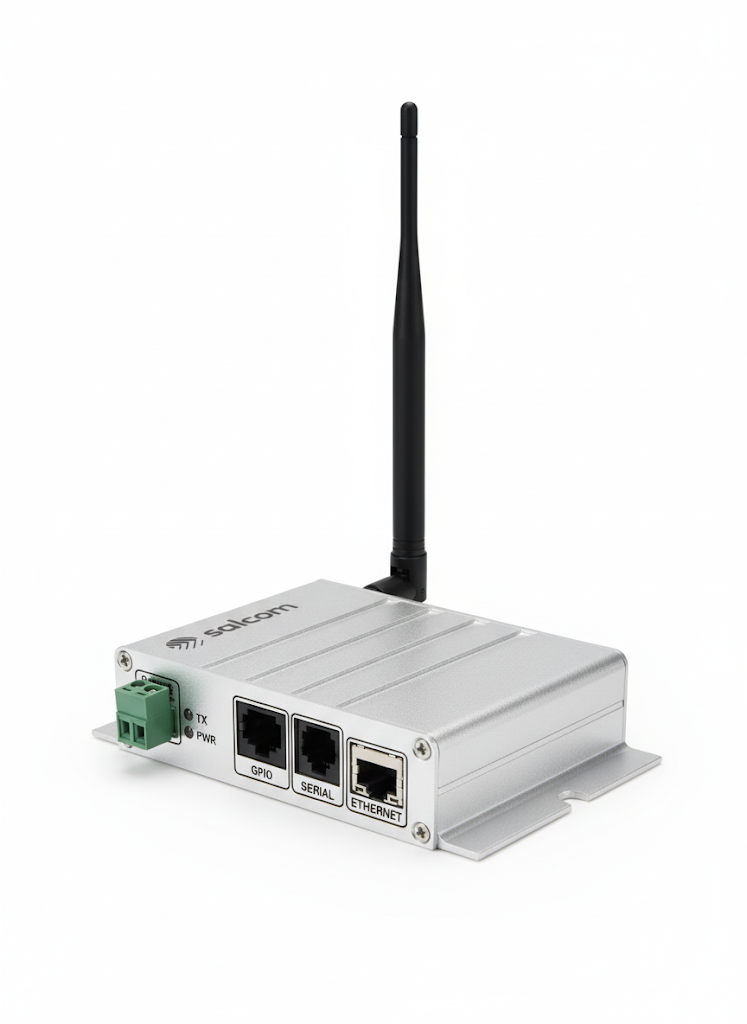

Transmitter with Ethernet - VHF / UHF

20-62

The new 20-62 series of ethernet capable transmitters are available as VHF or UHF units with user-programmable power outputs ranging from 50 milliwatts to 5 watts.

Software can be used to tune across its full frequency range with no hardware adjustments. Other user changeable parameters include baud rate, CapCodes and messaging.

Available protocols includes:
Salcom, TAP (PET), Scope, Comp1, Comp2, TNPP, ESPA4.4.4, Ascom, Austco, Match, Gent, SMS, Gaming, GPS & Pulse Count.

The new 20-62 transmitters are available as VHF and UHF units with user-programmable power outputs ranging from 50 milliwatts to 5 watts. Using programming software, each model can be tuned across its full frequency range with no hardware adjustments.

They are capable of operating as NRZ or POCSAG transmitters. The built-in POCSAG encoder can be enabled or disabled as required.

In addition to a RS232 serial port, an on-board USB port enhances the range of applications to which the transmitter can be applied. Input/Output expansion is also possible via input/output module or Ethernet.

The Ethernet, USB and RS232 ports can be used to initiate transmissions using the Salcom proprietary protocol, TAP/PET, TNPP, ESPA.4.4.4, Ascom, Gaming, Austco, Match, Gent, GPS & Pulse Count, SMS, Scope, Comp1, Comp2, 12-32, 12-36, 12-84. These ports can be used concurrently and also initiate transmissions via the USB and Ethernet ports, each of which can support a different protocol, if so desired.

Four discrete inputs are supported which may be used to initiate relay commands for remote control applications.

The unit also supports low voltage detection on the power input.

Configuration of the transmitter is performed via the USB port or the serial port using the Salcom programming application, which allows for the setting of all operational parameters.

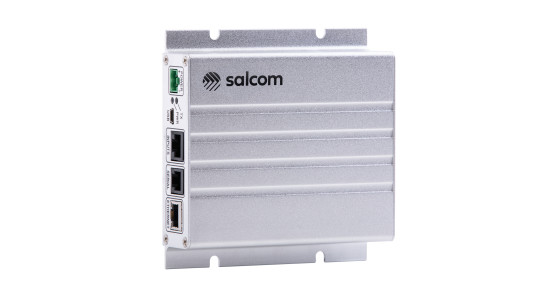

The 20-62 is housed in an attractive, durable extruded aluminium case with provision on the base plate for wall mounting.

  • Supports NRZ and POCSAG Transmissions
  • High VSWR tolerance
  • Transmit duty cycle 50; maximum 5 minutes on time
  • Direct/RS232 buffered serial port
  • USB port
  • Ethernet port
  • Four discrete inputs
  • POCSAG encoder (programmable on/off)
  • RF output through standard BNC termination
  • Protocols: Salcom, TAP/PET, TNPP, ESPA.4.4.4, Ascom, Gaming, Austco, Match, Gent, GPS & Pulse Count, SMS, Scope, Comp1, Comp2, 12-32, 12-36, 12-84.
  • 240 Character messaging
  • Buffered messages
  • Input timing control(watchdog)
  • Programmable de-bounce control
  • NZS/AS4769, ETS 300 224 (EC), FCC Pt 90.203 approvals
  • Rugged extruded aluminium case
Technical Specifications
Model 20-62 VHF/UHF Transmitter
Frequency Range VHF 140 - 174 MHz - (Model No. 20-62 VHF)
Frequency Range UHF 427.5 - 475 MHz UHF (Model No. 20-62 UHF)
Frequency Selection User Configurable
Power Supply +13.8V typical (11 to 15 VDC range)
Power Consumption Standby: 60mA (90mA when connected to Ethernet)
Transmit: 1.0A @ 5W (typical)
Transmit Power 5kHz, 6.25kHz, 10kHz, 12.5kHz, 20KHz or 25kHz
(custom values on request)
Channel Spacing 5kHz, 6.25kHz, 10kHz, 12.5kHz, 20kHz, 25kHz
Modulation FSK with NRZ data
Deviation ±2.25kHz or ±4.5kHz (custom values on request)
Transmit Duty Cycle 100% (with adequate ventilation)
Baud Rates 512, 1200
Message Format POCSAG
Configuration Application Salcom Configuration Tool (Sacoto)
(Downloadable from 'Downloads' tab)
Programming Cable Standard USB mini-B, RS232 (with adaptor) or Ethernet
Serial Port 9600 , N, 8, 1; RS232 / USB
Serial Protocols Salcom; TAP (PET/IXO); TNPP v3.8; TPP (half), TPP (full); ESPA 4.4.4; Match; Gent; GPS & Pulse
Count; SMS; Comp1; Comp2; Visicad; Morley; FENZ; Flex; Mul-tone (half). Mul-tone (Full), also
protocols compatible with: Ascom, Austco, Scope, Blick and Gaming
Discrete Inputs Four switch inputs on RJ45 connector
Other I/O Ethernet, External Modulation (0 - 5V), PTT in, PTT Out (50mA max)

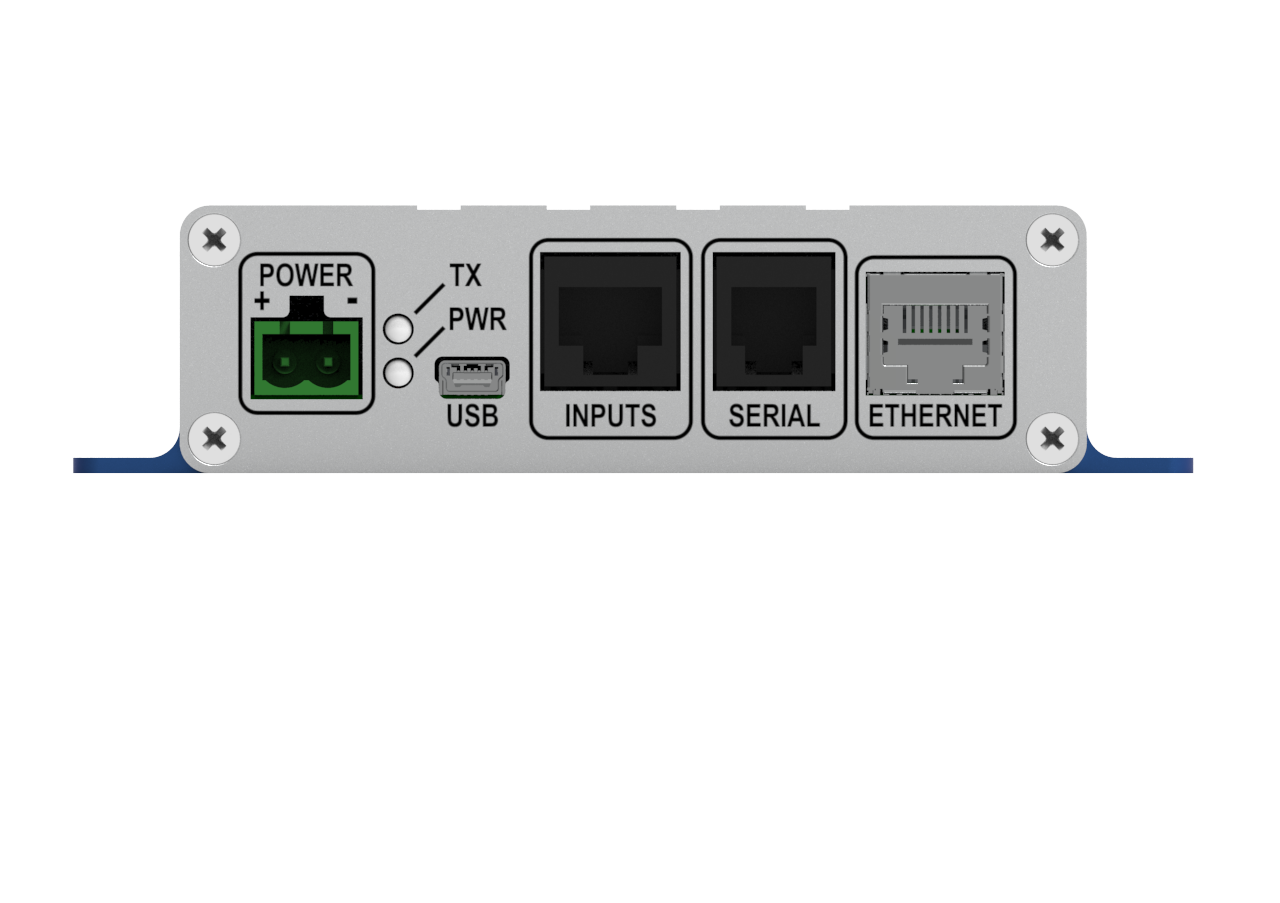

Connectors SMA: RF Output; RJ-12 (6P6C)
Two RS-232 serial ports
USB-mini: USB-2 serial
RJ-45 (8P8C) Inputs and Outputs
Network RJ-45: Ethernet
Pluggable Terminal Block: DC Power in
Power Connector 2-way pluggable terminal block, 5.08mm (0.2”) pitch (provided)
Environmental Protection Not suitable for unprotected outdoor use. Must be protected from adverse environmental conditions
Operating Temperature -20ºC to +50ºC (-4ºF to +122ºF)
Indicators Power LED (Green)
- Slow Flashing = Normal Operation
Status LED (Red)
- Rapid flashing = Transmitting
- Slow flashing (3 -times/sec for 7 secs) = Error Condition
Weight 320g
Enclosure Dimensions 130mm x 31mm x 125mm (WxDxH) (5.12 x 1.23 x 5.04 in)
Enclosure Material Extruded aluminium
Colour Bright Silver Anodised Aluminium
Type Approvals AS/NZS 4769.1:2000 + Amendment 1:2002 (RF)
EN 300-224 V2.1.0. (RF), EN301 489-2 V2.1.0 (EMC)
EN 60950-1:2006 (Safety)
FCC CFR47 (Part 90 (RF). Part 2 (RF), Part 15 (EMC), Part 1 (Safety)
Product Brochure
  • Model:
    20-62
Product Manual
Sacoto v1.1.3. Configuration Tool
UdpTcpGUI Test Tool v0.2.0
FCC Certificate (VHF)
CE/NZ/AUS Certificate 1912.06.1 Salcom 20-62-0150 VHF Transmitter EN300224 V2.1.1 2017-06
CE/NZ/AUS Certificate 1912.06.3 Salcom 20-62-0150 VHF Transmitter EN301489-2 V2.1.1 2019-04
FCC Certificate (UHF)
CE/NZ/AUS Certificate 1912.07.1 Salcom 20-62-0450 UHF Transmitter EN300224 V2.1.1 2017-06
CE/NZ/AUS Certificate 1912.07.3 Salcom 20-62-0450 UHF Transmitter EN301489 V2.1.1 2019-04
