PCB Transmitters - UHF

12-86-5000

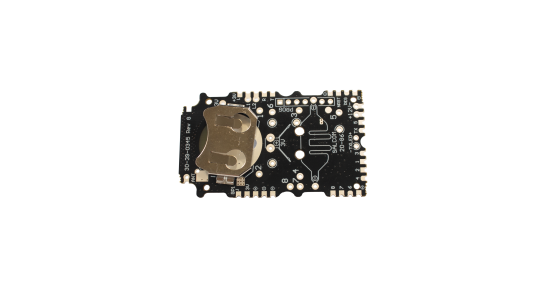

The 12-86-5000 transmitter PCB used in this product is a small low cost, high specification bare printed circuit board paging transmitter measuring 60mm by 31mm and only 6mm deep with the battery fitted.

It has been tested and type approved as a bare printed circuit board allowing integration into other  products without further type approval testing being required.

The 12-86-5000 is an extremely small, low cost UHF POCSAG paging transmitter PCB powered by a standard CR2032 coin cell. The transmitter will operate for more than 1000 transmissions under normal conditions before needing to be replaced.

The transmitter is ideal for developers and integrators wishing to develop their own low power solution.

Using a POCSAG receiver the 12-86-5000, as with all paging transmitters, can also be used for any general remote control application, such as turning on lights, disabling alarms or switching machinery on or off.

Care is recommended in order to avoid static discharge which may damage the PCB during handling

12-86 transmitters support up to 5 inputs, each of which can be programmed with up to a 35-character message. Programming can be either with a serial programming cable that can be purchased separately or pre-programmed when supplied. Once the operating frequency has been set the 12-86-5000 messages can be changed using configuration software with an optional programming lead.

Although the 12-86 is a low power transmitter, a direct line of sight transmission range of up to 200 metres can be expected. Transmit range within buildings is reduced, but still considerable having proven to be effective in some cases between floors and across buildings.

  • UHF operation
  • Small, light & discrete
  • Internal cell battery
  • Cost-effective
  • Ideal for short distance paging or telemetry applications
  • Ideal for developers and integrators
  • Capable of operating on existing in-house paging systems
  • Simple Telemetry solution
  • Also available with 5 buttons, antenna and LED (please see product 12-86-5005)
Specification
Frequency Range 440-470MHz - UHF
Frequency Selection User configurable User configurable
Power Supply 3V CR2032 button cell
Battery Life Approx 1000 transmissions
Power Consumption Standby: 100nA
Transmit: 45mA
Transmit Power 10mW
Channel Spacing 25kHz
Modulation FSK with NRZ data
Deviation ±4.5kHz
Transmit Duty Cycle Up to 20%; Maximum 30 seconds on time
Baud Rate 512
Message Format POCSAG
Configuration Application 12-86 Configuration Tool
(Available free to download form Downloads page)
Programming Cable 12-47-0000 (Board header to DB9)
Can be used with a USB to RS232 DB9 Serial Adapter Cable
12-48-0000 (Board header to mini USB)
Serial Port 9600 , N, 8, 1; RS232
Discrete Inputs 1 to 5 contacts available
RF Connector Internal aerial
Environmental Protection Not suitable for outdoor use and should be protected from adverse environmental conditions
Operating Temperature 10ºC to +55ºC (+14ºF to +131ºF)
Weight 90g
Enclosure Material N/A
Colour N/A
Type Approvals AS/NZS 4769.1:2000 + Amendment 1:2002 (RF)
EN 300-224-2 (RF)
FCC CFR47 Part 90 (RF)
EN 301 489-2 V2.1.0 (EMC)
EN 60950-1:2006 (Safety)
12-86-5000 / 5005 Brochure
12-86-0000 Manual
  • Programming:
    Programming of the 12-86-5000 is as per the 12-86-0000 pendant transmitters. Please see Manual for instructions
12-86-0000 Configuration Tool
  • Information

    The 12-86-5000 is an extremely small, low cost UHF POCSAG paging transmitter PCB powered by a standard CR2032 coin cell. The transmitter will operate for more than 1000 transmissions under normal conditions before needing to be replaced.

    The transmitter is ideal for developers and integrators wishing to develop their own low power solution.

    Using a POCSAG receiver the 12-86-5000, as with all paging transmitters, can also be used for any general remote control application, such as turning on lights, disabling alarms or switching machinery on or off.

    Care is recommended in order to avoid static discharge which may damage the PCB during handling

    12-86 transmitters support up to 5 inputs, each of which can be programmed with up to a 35-character message. Programming can be either with a serial programming cable that can be purchased separately or pre-programmed when supplied. Once the operating frequency has been set the 12-86-5000 messages can be changed using configuration software with an optional programming lead.

    Although the 12-86 is a low power transmitter, a direct line of sight transmission range of up to 200 metres can be expected. Transmit range within buildings is reduced, but still considerable having proven to be effective in some cases between floors and across buildings.

  • Details
    • UHF operation
    • Small, light & discrete
    • Internal cell battery
    • Cost-effective
    • Ideal for short distance paging or telemetry applications
    • Ideal for developers and integrators
    • Capable of operating on existing in-house paging systems
    • Simple Telemetry solution
    • Also available with 5 buttons, antenna and LED (please see product 12-86-5005)
  • Specifications
    Specification
    Frequency Range 440-470MHz - UHF
    Frequency Selection User configurable User configurable
    Power Supply 3V CR2032 button cell
    Battery Life Approx 1000 transmissions
    Power Consumption Standby: 100nA
    Transmit: 45mA
    Transmit Power 10mW
    Channel Spacing 25kHz
    Modulation FSK with NRZ data
    Deviation ±4.5kHz
    Transmit Duty Cycle Up to 20%; Maximum 30 seconds on time
    Baud Rate 512
    Message Format POCSAG
    Configuration Application 12-86 Configuration Tool
    (Available free to download form Downloads page)
    Programming Cable 12-47-0000 (Board header to DB9)
    Can be used with a USB to RS232 DB9 Serial Adapter Cable
    12-48-0000 (Board header to mini USB)
    Serial Port 9600 , N, 8, 1; RS232
    Discrete Inputs 1 to 5 contacts available
    RF Connector Internal aerial
    Environmental Protection Not suitable for outdoor use and should be protected from adverse environmental conditions
    Operating Temperature 10ºC to +55ºC (+14ºF to +131ºF)
    Weight 90g
    Enclosure Material N/A
    Colour N/A
    Type Approvals AS/NZS 4769.1:2000 + Amendment 1:2002 (RF)
    EN 300-224-2 (RF)
    FCC CFR47 Part 90 (RF)
    EN 301 489-2 V2.1.0 (EMC)
    EN 60950-1:2006 (Safety)
  • Manuals & Downloads
    12-86-5000 / 5005 Brochure
    12-86-0000 Manual
    • Programming:
      Programming of the 12-86-5000 is as per the 12-86-0000 pendant transmitters. Please see Manual for instructions
    12-86-0000 Configuration Tool
