Call-Point Transmitters - UHF

12-86-9000

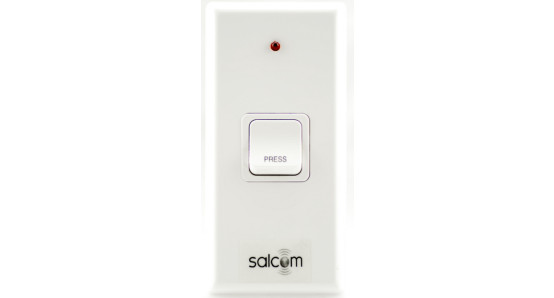

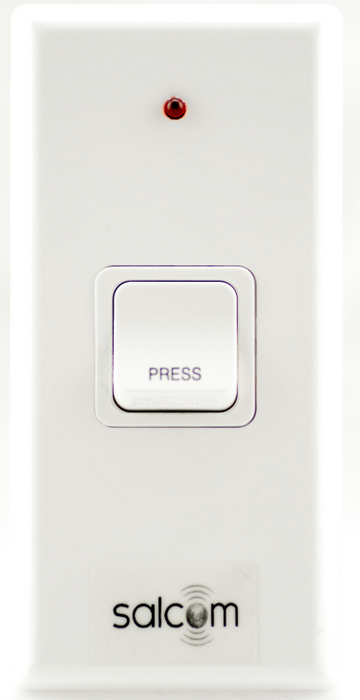

Ideally suited to a variety of Reception area, retail assistance and control applications, the 12-86-9000  is a small, high specification, POCSAG Call-Point paging transmitter utilising the 12-86-5000 paging transmitter printed circuit board. It subsequently inherits all the type approvals of the 12-86 family. It is capable of transmitting text messages directly to pocket pagers, audible or visual alarms or to LCD screens.

The 12-86 range of products can send text messages directly to paging receivers, providing simpler, lower cost systems since intermediate receivers and transmitters are not required for short range applications.

Using an appropriate receiver, the 12-86-9000, can also be used for a general remote control applications such as turning on lights, disabling alarms etc.

Powered by a standard CR2032 coin cell, the transmitter will operate for more than one thousand transmissions under normal conditions before the battery needs to be replaced.

12-86 transmitters support up to five inputs, each of which can be programmed with up to a thirty five character message. The units can be programmed with a serial programming cable (purchased separately) or they can be supplied pre-programmed.

Although the 12-86 is a low power transmitter, when used as a call-point paging transmitter a direct line of sight range of up to eight hundred metres can be expected. When used within buildings the range will be reduced depending upon the building, but it will still be significant.

The 12-86-9000 fits the form factor of many standard electrical face plates so that it can remain in keeping with the surrounding switch gear in cosmetically sensitive areas.

By default the 12-86-9000 is supplied with a mounting block, but it can be flush mounted in the same manner as most electrical switch plates if required.

For configuration software please see the downloads tab.

  • UHF operation
  • Small, light & discrete
  • Internal cell battery
  • Cost-effective
  • Ideal for near distance paging, assistance, duress or operation of lights or doors etc.
  • Capable of operating on existing in-house paging systems
  • 1 or 2 button variants available, each button individually configurable with its own 35-character message
  • Simple Telemetry solution or for use with pocket pagers
  • Commercial paging solution
Specification
Frequency Range 440-470MHz - UHF
Frequency Selection User configurable
Power Supply 3V CR2032 button cell
Battery Life Approx 1000 transmissions
Approx 10 years standby
Power Consumption Standby: 100nA
Transmit: 45mA
Transmit Power 10mW
Channel Spacing 25kHz
Modulation FSK with NRZ data
Deviation ±4.5kHz
Transmit Duty Cycle Up to 20%; Maximum 30 seconds on time
Baud Rate 512
Message Format POCSAG
Configuration Application 12-86 Configuration Tool
(Avialable for free download from Downloads page)
Programming Cable 12-47-0000 (Board header to DB9)
Can be used with a USB to RS232 DB9 Serial Adapter Cable
12-48-0000 (Board header to mini USB)
Serial Port 9600 , N, 8, 1; RS232
Discrete Inputs 1 or 2 button options
RF Connector Internal aerial
Environmental Protection Not suitable for outdoor use and should be protected from adverse environmental conditions
Operating Temperature -10ºC to +55ºC (+14ºF to +131ºF)
Weight 90g
Enclosure Dimensions 50mm x 113mm x 46mm (WxDxH)
Enclosure Material Plastic
Colour White
Type Approvals AS/NZS 4769.1:2000 + Amendment 1:2002 (RF)
EN 300-224-2 (RF)
FCC CFR47 Part 90 (RF)
EN 301 489-2 V2.1.0 (EMC)
EN 60950-1:2006 (Safety)
12-86-9000 Brochure
12-86-9000 Manual
12-86-0000 Configuration Tool
