Low Power Transceiver with Ethernet - VHF / UHF

20-90

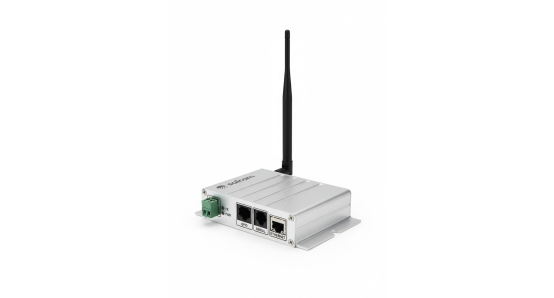

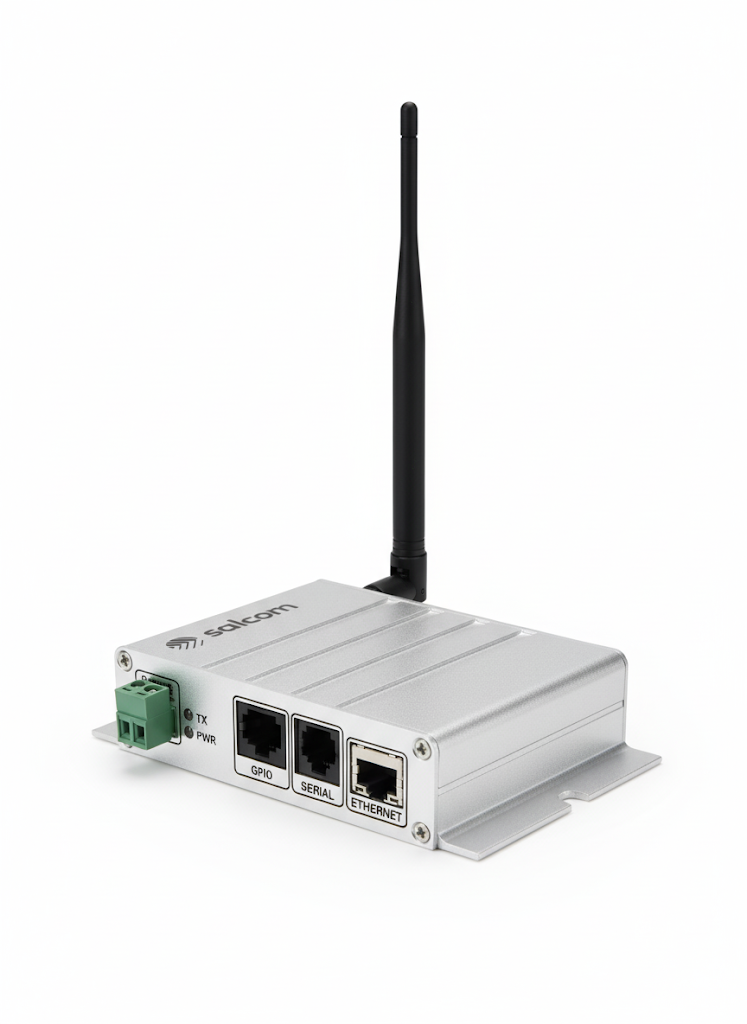

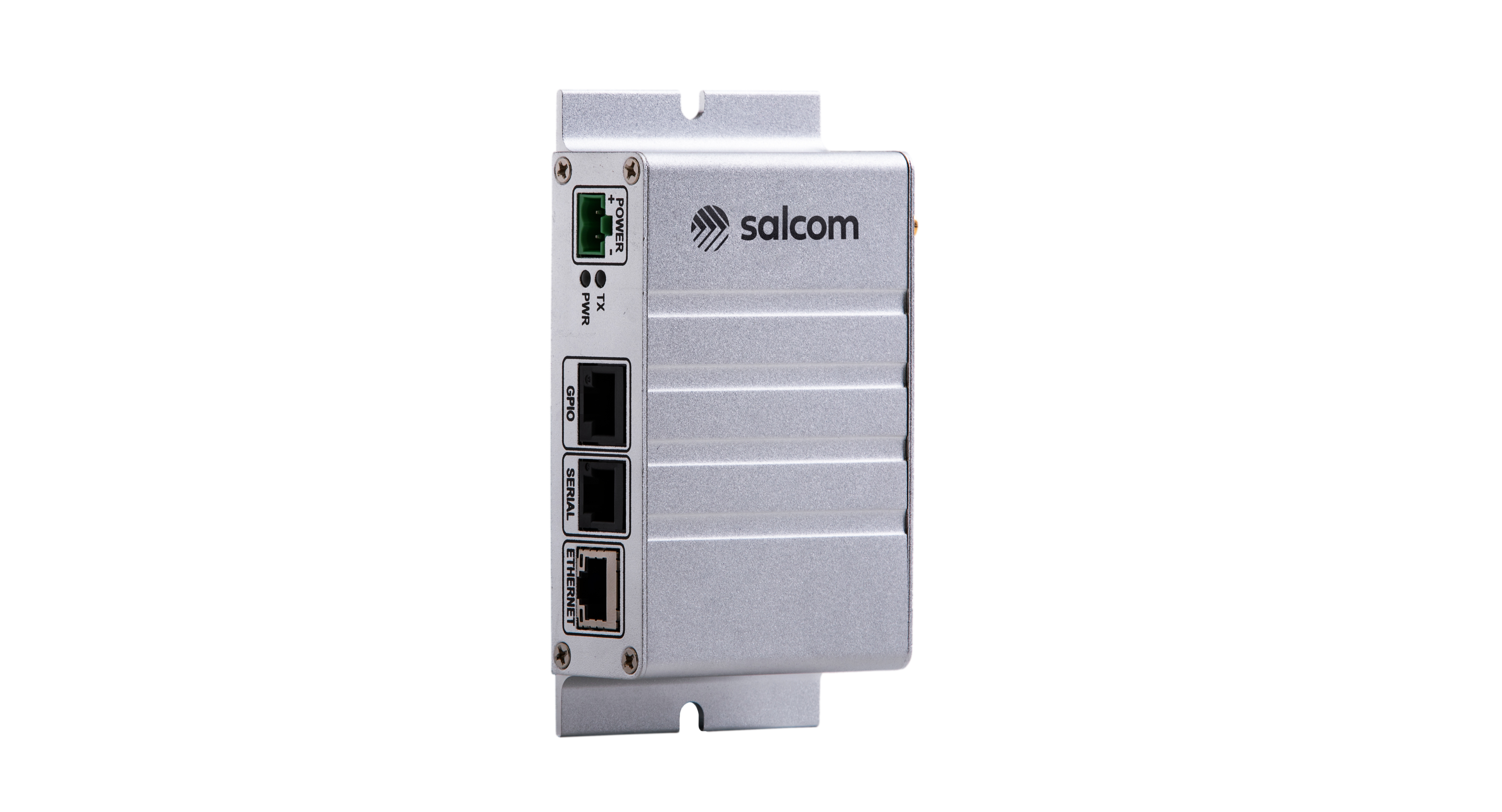

The 20-90 is a simple to configure POCSAG paging transceiver with a high sensitivity receiver combined with a 100mW transmitter. It operates over the frequency range of 142-175MHz (VHF variant) or 440 479MHz (UHF variant) decoding and encoding 512 or 1200 baud, alphanumeric or numeric messages.

The 20-90 supports multiple message queueing and will queue up to four 73-character messages or more smaller messages.



The 20-90 Can be controlled via an RS232 serial interface or TCP/IP to provide numeric, alphanumeric and tone only POCSAG encoding.

The product supports full batching of serially queued input messages and can be configured to automatically respond with checksum information of the last received message.

An intelligent self-adjusting channel busy check prevents message collision or corruption.

The receiver is supplied with clean contacts rated at 1A 24V DC operation. LEDs indicate receiver operation and status.

Virtual outputs can be used to remotely trigger input or periodic messages and provide a mechanism to acknowledge reception of messages. It can transmit the received signal strength of the last received message allowing the receiver positioning and system health to be monitored.

  • Supports Salcom relay control protocol to control one on-board relay plus several “virtual outputs”
  • TCP/IP connectivity
  • Virtual outputs can be used to remotely trigger input or periodic messages
  • 5 user definable I/O configurable as input or outputs
  • 2 dedicated clean-contact relay outputs
  • FSK with NRZ Data
  • 142-175MHz (VHF) & 440-479 MHz (UHF) variants available
  • Up to 100mW output
  • Paging Transceiver: allowing both the encoding and decoding of paging messages
  • Paging Receiver (only—by configuration): allowing the decoding (only) of paging messages where desired
  • Transmitter: With channel busy check function before transmissions
  • Autonomous Store & Forward Paging Repeater with duplicate message reject
  • Allows TCP/IP output for closed loop system monitoring of messages received
Technical Specifications
Frequency Range 142-175MHz (VHF)
440-479MHz (UHF)
Frequency Selection User configurable
Power Supply +13.8V typical (11 to 15 VDC range)
Power Consumption Standby: 43mA
Transmit: 73mA at 100mW (VHF)
Relays: 22mA per energised relay
Ethernet + 33mA
Transmit Power 10, 20, 50 or 100mW
Channel Spacing 10kHz, 12.5kHz, 6.25kHz
Modulation FSK with NRZ data
Deviation ±4.5kHz & ±2.3kHz
Receiver Sensitivity Approx -120 dBm
Baud Rates 512, 1200, 2400
Message Format POCSAG
Configuration Application Salcom Configuration Tool
(Downloadable from 'Downloads' tab)
Programming Cable 12-45-0000 (RJ12 to DB9)
Can be used with a USB to RS232 DB9 Serial Adapter Cable
Serial Port 9600, N, 8, 1; RS232
Serial Protocols Salcom, Scope, TNPP v3.8
Discrete Inputs Up to five, dependent on number of inputs configured
Ethernet TCP/IP
Discrete Outputs Up to five open drain outputs, dependent on number of inputs configured
Two rated to 500mA max. and three current limited to 5mA max.

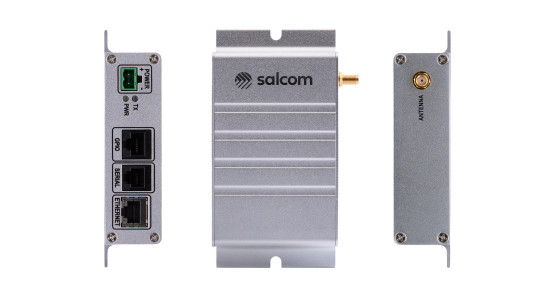

Connectors Serial Port (RS232) = RJ12 (6P6C)
Inputs / Relay Output / Open Collector) = RJ45 (8C)
Ethernet = RJ45
Power Connector 2-way plug & socket, screw connections (supplied)
RF Connector 50Ω SMA
Environmental Protection Not suitable for outdoor use and should be protected from adverse environmental conditions
Operating Temperature -10ºC to +50ºC (+14ºF to +122ºF)
Indicators Power LED (Green)
- Flashing (1s Freq) = Normal Operation
- Solid (up to 5s) = Receiving Data
Status LED (Red)
- On = Transmitting
- Flashing = Error Condition
Weight 188g
Enclosure Dimensions 130mm x 68mm x 31mm (W x D x H)
Enclosure Material Extruded aluminium
Colour Silver
Type Approvals AS/NZS 4769.1:2000 + Amendment 1:2002 (RF)
EN 300-224-2 (RF) (to follow)
FCC CFR47 Part 90 (RF)
FCC CFR47 Part 15 (EMC)
EN 301 489-2 V2.1.0 (EMC) (to follow)
EN 60950-1:2006 (Safety) (to follow)
Other All specifications subject to change without prior notification.
20-90 Transceiver Brochure
Sacoto v1.1.3. Configuration Tool
20-90 Product Manual
